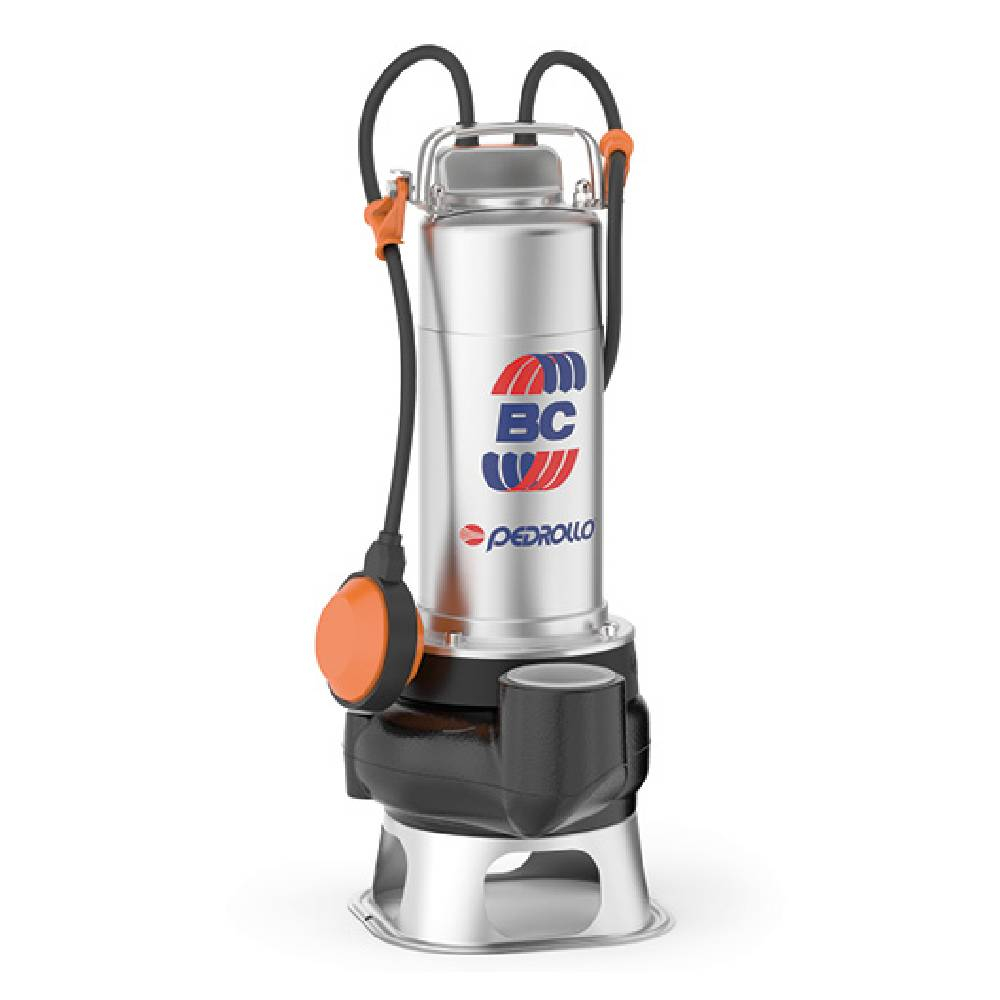

Pompa submersibila cu doua turbine Pedrollo BCm 10/50-N, 750 W, 600 L/min, Hmax. 12 m, corp fonta, monofazata
![Pompa submersibila cu doua turbine Pedrollo BCm 10/50-N, 750 W, 600 L/min, Hmax. 12 m, corp fonta, monofazata [0]](https://gomagcdn.ro/domains/conti.ro/files/product/medium/pompa-submersibila-cu-doua-turbine-pedrollo-bcm-10-50-n-750-w-600-l-min-hmax-11-m-corp-fonta-monofazata-780781.jpg "Pompa submersibila cu doua turbine Pedrollo BCm 10/50-N, 750 W, 600 L/min, Hmax. 12 m, corp fonta, monofazata [0]")
![Pompa submersibila cu doua turbine Pedrollo BCm 10/50-N, 750 W, 600 L/min, Hmax. 12 m, corp fonta, monofazata [1]](https://gomagcdn.ro/domains/conti.ro/files/product/medium/pompa-submersibila-cu-doua-turbine-pedrollo-bcm-10-50-n-750-w-600-l-min-hmax-11-m-corp-fonta-monofazata-896709.png "Pompa submersibila cu doua turbine Pedrollo BCm 10/50-N, 750 W, 600 L/min, Hmax. 12 m, corp fonta, monofazata [1]")
![Pompa submersibila cu doua turbine Pedrollo BCm 10/50-N, 750 W, 600 L/min, Hmax. 12 m, corp fonta, monofazata [2]](https://gomagcdn.ro/domains/conti.ro/files/product/medium/pompa-submersibila-cu-doua-turbine-pedrollo-bcm-10-50-n-750-w-600-l-min-hmax-11-m-corp-fonta-monofazata-160119.png "Pompa submersibila cu doua turbine Pedrollo BCm 10/50-N, 750 W, 600 L/min, Hmax. 12 m, corp fonta, monofazata [2]")
![Pompa submersibila cu doua turbine Pedrollo BCm 10/50-N, 750 W, 600 L/min, Hmax. 12 m, corp fonta, monofazata [3]](https://gomagcdn.ro/domains/conti.ro/files/product/medium/pompa-submersibila-cu-doua-turbine-pedrollo-bcm-10-50-n-750-w-600-l-min-hmax-11-m-corp-fonta-monofazata-833327.png "Pompa submersibila cu doua turbine Pedrollo BCm 10/50-N, 750 W, 600 L/min, Hmax. 12 m, corp fonta, monofazata [3]")
![Pompa submersibila cu doua turbine Pedrollo BCm 10/50-N, 750 W, 600 L/min, Hmax. 12 m, corp fonta, monofazata [1]](https://gomagcdn.ro/domains/conti.ro/files/product/original/pompa-submersibila-cu-doua-turbine-pedrollo-bcm-10-50-n-750-w-600-l-min-hmax-11-m-corp-fonta-monofazata-780781.jpg "Pompa submersibila cu doua turbine Pedrollo BCm 10/50-N, 750 W, 600 L/min, Hmax. 12 m, corp fonta, monofazata [1]")
![Pompa submersibila cu doua turbine Pedrollo BCm 10/50-N, 750 W, 600 L/min, Hmax. 12 m, corp fonta, monofazata [2]](https://gomagcdn.ro/domains/conti.ro/files/product/original/pompa-submersibila-cu-doua-turbine-pedrollo-bcm-10-50-n-750-w-600-l-min-hmax-11-m-corp-fonta-monofazata-896709.png "Pompa submersibila cu doua turbine Pedrollo BCm 10/50-N, 750 W, 600 L/min, Hmax. 12 m, corp fonta, monofazata [2]")
![Pompa submersibila cu doua turbine Pedrollo BCm 10/50-N, 750 W, 600 L/min, Hmax. 12 m, corp fonta, monofazata [3]](https://gomagcdn.ro/domains/conti.ro/files/product/original/pompa-submersibila-cu-doua-turbine-pedrollo-bcm-10-50-n-750-w-600-l-min-hmax-11-m-corp-fonta-monofazata-160119.png "Pompa submersibila cu doua turbine Pedrollo BCm 10/50-N, 750 W, 600 L/min, Hmax. 12 m, corp fonta, monofazata [3]")
![Pompa submersibila cu doua turbine Pedrollo BCm 10/50-N, 750 W, 600 L/min, Hmax. 12 m, corp fonta, monofazata [4]](https://gomagcdn.ro/domains/conti.ro/files/product/original/pompa-submersibila-cu-doua-turbine-pedrollo-bcm-10-50-n-750-w-600-l-min-hmax-11-m-corp-fonta-monofazata-833327.png "Pompa submersibila cu doua turbine Pedrollo BCm 10/50-N, 750 W, 600 L/min, Hmax. 12 m, corp fonta, monofazata [4]")
Info:
* Pretul este valabil doar online
* Comenzile se plaseaza exclusiv pe site
- Descriere
- Caracteristici
- Download (1)
- Review-uri (0)
BCm 10/50-N
Electropompe sumersibile cu doua turbine - pasaj de trecere 50 mm
Pompele submersibile BC sunt potrivite pentru scurgerea apei murdare si a apelor uzate in aplicatii de uz casnic si civil. Acestea sunt echipate cu un turbina din otel inoxidabil DOUBLE-CANAL si sunt capabile sa pompeze lichide care contin copuri solide in suspensie de pana la D 50 mm.
Norme de executie si siguranta:
Cablu de alimentare lung de 5 m.
Comutator plutitor extern doar pentru versiunile monofazate.
EN 60335-1, IEC 60335-1, CEI 61-150
EN 60034-1, IEC 60034-1, CEI 2-3
Date despre motor si pompa:
Produs
Cod: 48SGM88A0A1U
Familie: BC.../50
Gama: Pompe de canalizare
Tipologie: Submersibile
Extra UE Only: Nu
Utilizari: Civil, Domestic, Industrial
Limite de utilizare
Tip lichid: Apa de canalizare
Temparatura minima a lichidului: 0 °C
Temperatura maxima a lichdului: 40 °C
Continut maxim de clor: - ppm
Continut maxim de nisip: - ppm
Inaltimea maxima de aspiratie: 0 m
Adancimea maxima de imersie: 5 m
Temperatura ambientala maxima: - °C
Temperatura ambientala minima: - °C
Presiune maxima de exercitiu: - bar
Conexiuni
Tipul conexiunii: Filet gaz
Dimensiunea guri aspiratie: -
Dimensiunea guri refulare: 2''
Punct de lucru
Debit actual: 0,000 l/min
Inaltimea de lucru: 0,000 m
Placuta de identificare a pompei

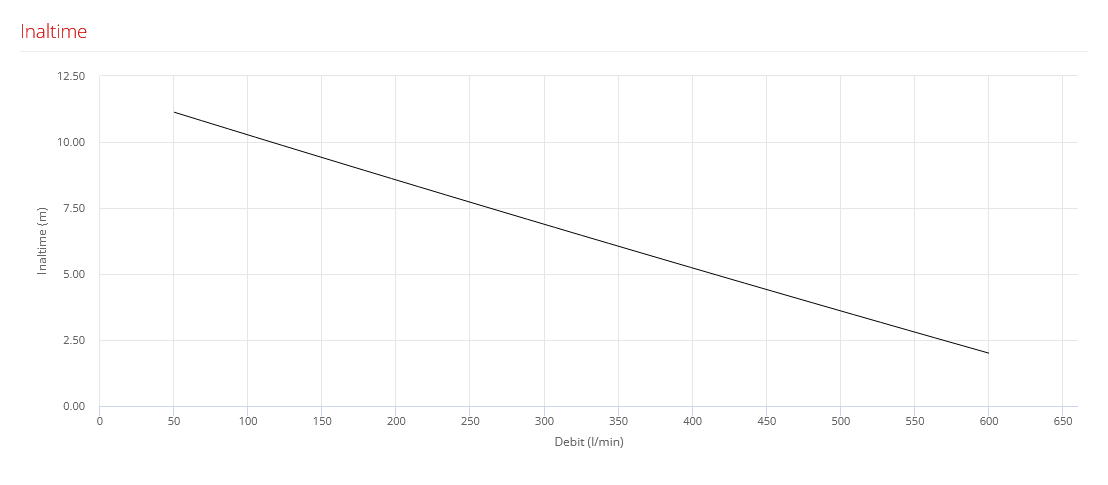

Debit: 50 - 600 l/min
Inaltime: 11 - 2 m
Inaltime maxima: 12 m
Inaltime minima: 2 m
Indice de eficienta minima: -
Placuta de identificare a motorului
Tensiune: 220-240 V
Faza: 1
Frecventa: 50 Hz
Viteza de rotatie: 2900 rpm
Putere nominala: 0.75 kW
Curent nominal: 5.5 A
Putere abosrbita P1: 1.21 kW
Gradul de eficienta: Undefined
Capacitate condensator: 25 µF
Tensiunea condensatorului: 450 V
Clasa de izolare: F
Grad de protectie IP: X8
Date de intrare
Debit nominal solicitat: 0,000 l/min
Inaltime solicitata: 0,000 m
Inaltimea sistemului geodezic: 0,000 m
Pierderi de sarcina ale sistemului: 0,000 m
NPSH disponibil: 0,000 m
Lichid: Water
Temperatura: 20 °C
Densitate: 998,1 kg/m³
Vascozitate cinematica: 1,00 mm²/s
Presiunea aburului: 2.318 Pa
Alte date despre pompa
Nivel maxim de presiune acustica 1 m: - dBA
Instalare orizontala: Nu
Trecerea corpurilor solide: 50,00 mm
Domeniu de utilizare: Apa murdara
Tip alimentare: La retea
Tensiune alimentare (V): 230
Putere motor (W): 750
Corp pompa: Fonta
Debit maxim (L/min): 600
Adancime max. de aspiratie (m): 5
Inaltime max. de refulare (m): 12
Flotor de nivel: Da
-
Fisa tehnica BC
Descarca
