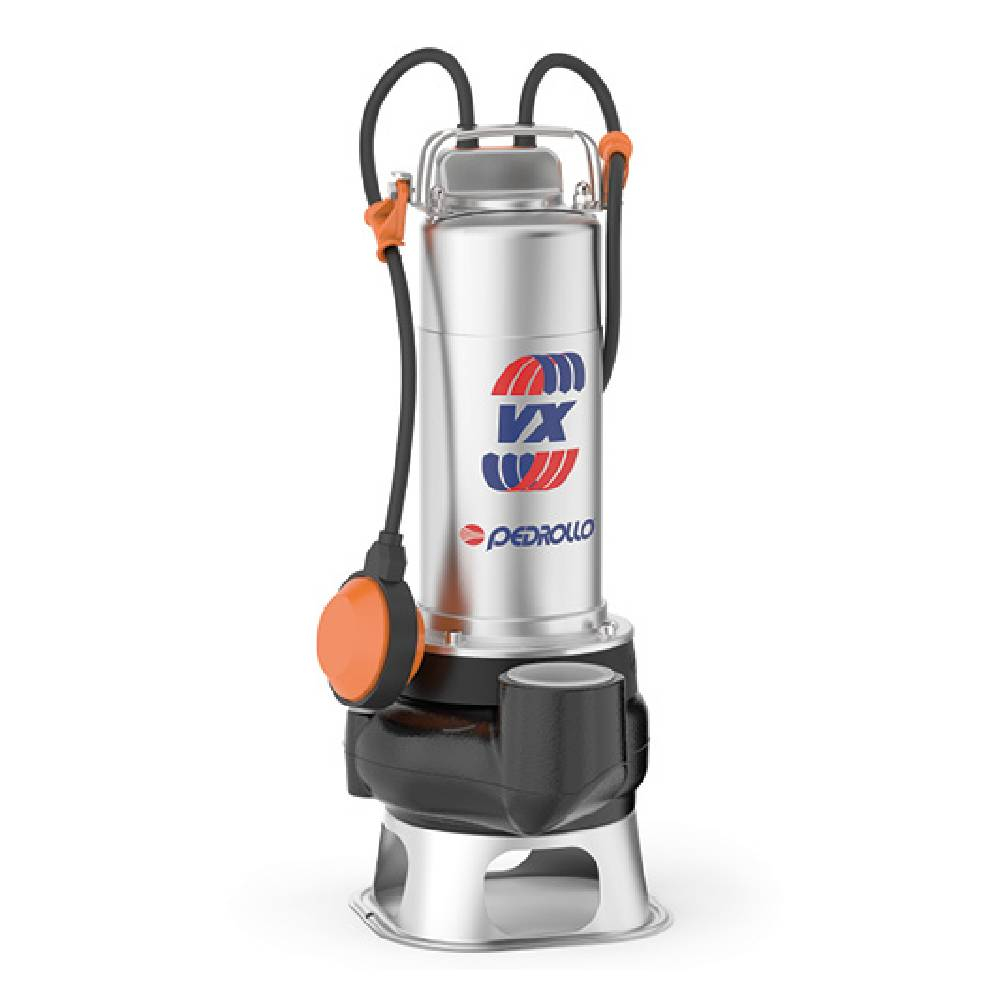

Pompa submersibila vortex Pedrollo VXm 10/50-N, 750 W, 550 L/min, Hmax. 9 m, monofazata
![Pompa submersibila vortex Pedrollo VXm 10/50-N, 750 W, 550 L/min, Hmax. 9 m, monofazata [0]](https://gomagcdn.ro/domains/conti.ro/files/product/medium/pompa-submersibila-vortex-pedrollo-vxm-10-50-n-750-w-550-l-min-hmax-9-m-monofazata-683785.jpg "Pompa submersibila vortex Pedrollo VXm 10/50-N, 750 W, 550 L/min, Hmax. 9 m, monofazata [0]")
![Pompa submersibila vortex Pedrollo VXm 10/50-N, 750 W, 550 L/min, Hmax. 9 m, monofazata [1]](https://gomagcdn.ro/domains/conti.ro/files/product/medium/pompa-submersibila-vortex-pedrollo-vxm-10-50-n-750-w-550-l-min-hmax-9-m-monofazata-912010.png "Pompa submersibila vortex Pedrollo VXm 10/50-N, 750 W, 550 L/min, Hmax. 9 m, monofazata [1]")
![Pompa submersibila vortex Pedrollo VXm 10/50-N, 750 W, 550 L/min, Hmax. 9 m, monofazata [2]](https://gomagcdn.ro/domains/conti.ro/files/product/medium/pompa-submersibila-vortex-pedrollo-vxm-10-50-n-750-w-550-l-min-hmax-9-m-monofazata-667875.png "Pompa submersibila vortex Pedrollo VXm 10/50-N, 750 W, 550 L/min, Hmax. 9 m, monofazata [2]")
![Pompa submersibila vortex Pedrollo VXm 10/50-N, 750 W, 550 L/min, Hmax. 9 m, monofazata [3]](https://gomagcdn.ro/domains/conti.ro/files/product/medium/pompa-submersibila-vortex-pedrollo-vxm-10-50-n-750-w-550-l-min-hmax-9-m-monofazata-782906.png "Pompa submersibila vortex Pedrollo VXm 10/50-N, 750 W, 550 L/min, Hmax. 9 m, monofazata [3]")
![Pompa submersibila vortex Pedrollo VXm 10/50-N, 750 W, 550 L/min, Hmax. 9 m, monofazata [1]](https://gomagcdn.ro/domains/conti.ro/files/product/original/pompa-submersibila-vortex-pedrollo-vxm-10-50-n-750-w-550-l-min-hmax-9-m-monofazata-683785.jpg "Pompa submersibila vortex Pedrollo VXm 10/50-N, 750 W, 550 L/min, Hmax. 9 m, monofazata [1]")
![Pompa submersibila vortex Pedrollo VXm 10/50-N, 750 W, 550 L/min, Hmax. 9 m, monofazata [2]](https://gomagcdn.ro/domains/conti.ro/files/product/original/pompa-submersibila-vortex-pedrollo-vxm-10-50-n-750-w-550-l-min-hmax-9-m-monofazata-912010.png "Pompa submersibila vortex Pedrollo VXm 10/50-N, 750 W, 550 L/min, Hmax. 9 m, monofazata [2]")
![Pompa submersibila vortex Pedrollo VXm 10/50-N, 750 W, 550 L/min, Hmax. 9 m, monofazata [3]](https://gomagcdn.ro/domains/conti.ro/files/product/original/pompa-submersibila-vortex-pedrollo-vxm-10-50-n-750-w-550-l-min-hmax-9-m-monofazata-667875.png "Pompa submersibila vortex Pedrollo VXm 10/50-N, 750 W, 550 L/min, Hmax. 9 m, monofazata [3]")
![Pompa submersibila vortex Pedrollo VXm 10/50-N, 750 W, 550 L/min, Hmax. 9 m, monofazata [4]](https://gomagcdn.ro/domains/conti.ro/files/product/original/pompa-submersibila-vortex-pedrollo-vxm-10-50-n-750-w-550-l-min-hmax-9-m-monofazata-782906.png "Pompa submersibila vortex Pedrollo VXm 10/50-N, 750 W, 550 L/min, Hmax. 9 m, monofazata [4]")
Info:
* Pretul este valabil doar online
* Comenzile se plaseaza exclusiv pe site
- Descriere
- Caracteristici
- Review-uri (0)
VXm 10/50-N
Electropompe submersibile vortex cu pasaj de trecere libera de 35 si 50 mm
Pompele VX sunt recomandate pentru aplicatii domestice, civile si industriale in toate cazurile in care apa contine in suspensie corpuri solide de pana la Ø 50 mm, de exemplu apa subterana, apa de suprafata, canalizare si apa murdara. Sunt de exemplu potrivite pentru drenarea zonelor inundate, cum ar fi beciuri, parcari subterane, spalatori auto, pentru golirea bazinelor de gunoi si pentru eliminarea apelor uzate. Aceste pompe se disting prin fiabilitatea lor, care poate sa fie cel mai bine apreciata in conditii de functionare automata in instalatii fixe.
Norme de executie si siguranta:
- Cablu de alimentare 5 m sau 10 m
- Intrerupator extern cu plutitor pentru versiunile monofazice
- EN 60335-1, IEC 60335-1, CEI 61-150
- EN 60034-1, IEC 60034-1, CEI 2-3
Produs
Cod: 48SGV91D0A1 (5 m) / 48SGV91D0A1U (10 m)
Familie: VXm /35-50
Gama: Pompe de canalizare
Tipologie: Submersibile
Extra UE Only: Nu
Utilizari: Civil, Domestic, Industrial
Limite de utilizare
Tip lichid: Apa de canalizare
Temparatura minima a lichidului: 0 °C
Temperatura maxima a lichdului: 40 °C
Continut maxim de clor: - ppm
Continut maxim de nisip: - ppm
Inaltimea maxima de aspiratie: 0 m
Adancimea maxima de imersie: 5 m
Temperatura ambientala maxima: - °C
Temperatura ambientala minima: - °C
Presiune maxima de exercitiu: - bar
Conexiuni
Tipul conexiunii: Filet gaz
Dimensiunea guri aspiratie: -
Dimensiunea guri refulare: 1 1/2''
Punct de lucru
Debit actual: 0,000 l/min
Inaltimea de lucru: 0,000 m
Placuta de identificare a pompei

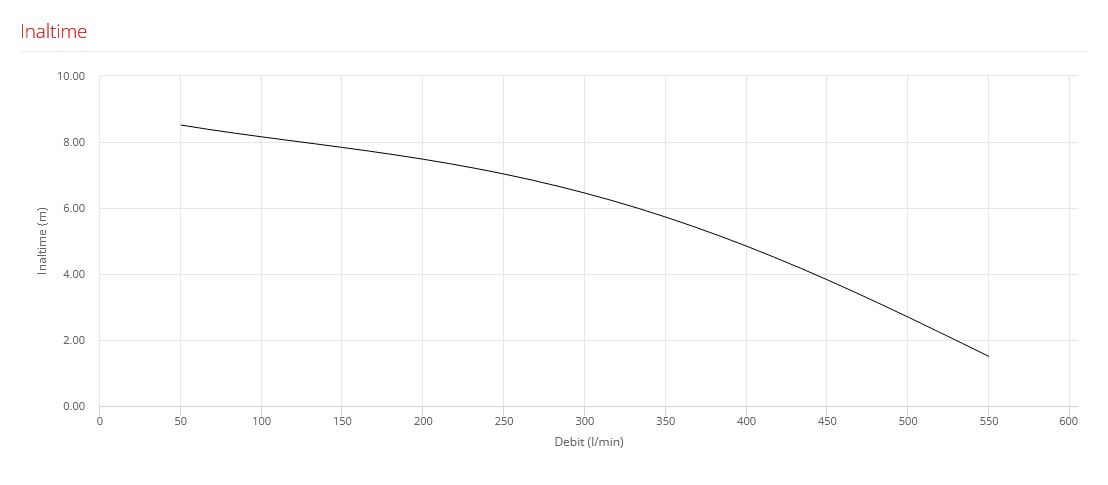

Debit: 50 - 550 l/min
Inaltime: 8.5 - 1.5 m
Inaltime maxima: 9 m
Inaltime minima: 1.5 m
Indice de eficienta minima: -
Placuta de identificare a motorului
Tensiune: 220-230 V
Faza: 1
Frecventa: 50 Hz
Viteza de rotatie: 2900 rpm
Putere nominala: 0.75 kW
Curent nominal: 5.5 A
Putere abosrbita P1: 1.2 kW
Gradul de eficienta: Undefined
Capacitate condensator: 25 µF
Tensiunea condensatorului: 450 V
Clasa de izolare: F
Grad de protectie IP: X8
Date de intrare
Debit nominal solicitat: 0,000 l/min
Inaltime solicitata: 0,000 m
Inaltimea sistemului geodezic: 0,000 m
Pierderi de sarcina ale sistemului: 0,000 m
NPSH disponibil: 0,000 m
Lichid: Water
Temperatura: 20 °C
Densitate: 998,1 kg/m³
Vascozitate cinematica: 1,00 mm²/s
Presiunea aburului: 2.318 Pa
Alte date despre pompa
Nivel maxim de presiune acustica 1 m: - dBA
Instalare orizontala: Nu
Trecerea corpurilor solide: 50 mm
Domeniu de utilizare: Apa de canalizare
Tip alimentare: La retea
Tensiune alimentare (V): 230
Putere motor (W): 750
Corp pompa: Fonta
Debit maxim (L/min): 550
Adancime max. de aspiratie (m): 5
Inaltime max. de refulare (m): 9
Flotor de nivel: Da
